Triple Screw Extruder price

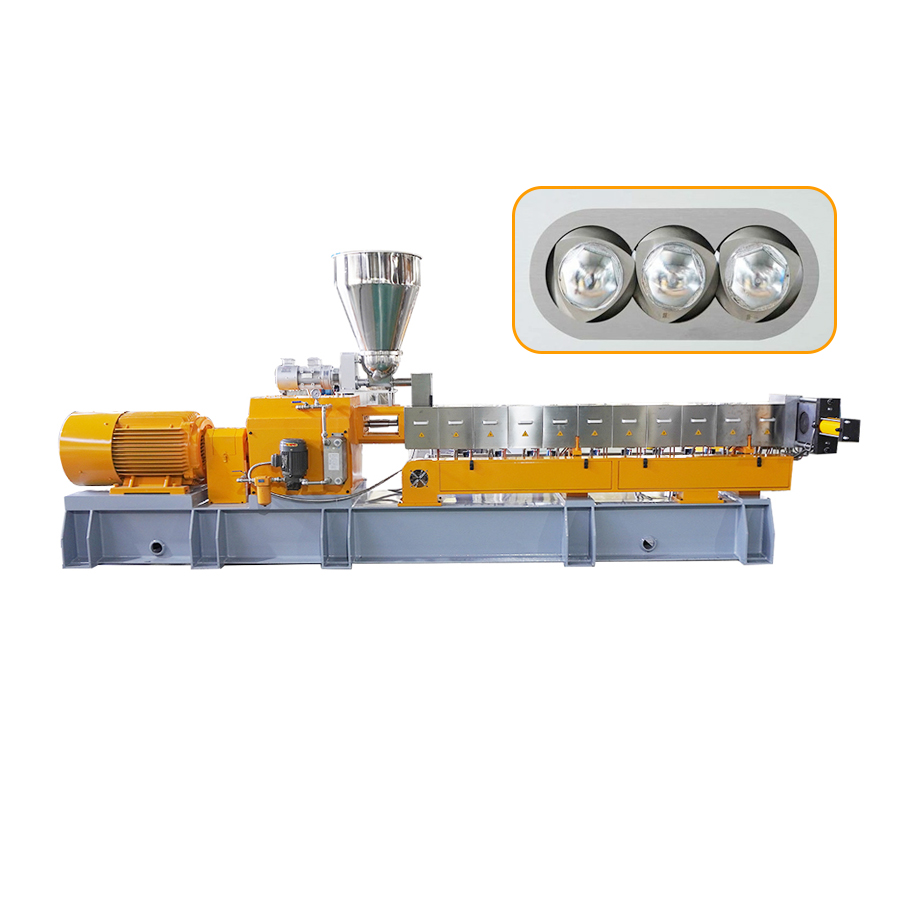

Triple Screw Extruder

As traditional twin-screw equipment gradually hits production capacity bottlenecks, inefficient machinery is quietly eroding your profits. A revolutionary processing powerhouse has emerged—the triple screw extruder.

             INQUIRE NOW
Product Parameters
Type L/D Main Power(kw) Screw Diameter(mm) Screw Speed (rpm) Output(kg/h)
MTR36 44~64:1 30 35.6 600 150~300
MTR50 44~64:1 90 50 600 350~600
MTR65 44~64:1 132 62.4 600 700~1200
MTR75 44~64:1 250 71 600 1500~2500
MTR95 44~64:1 350 93 600 2500~3500

Application Of  Triple Screw Extruder

  • Filling material: PP PE + 80% CaCO3
  • Masterbatch Project: Color Powder + CaCO3 (>50%)
  • When the proportion of calcium carbonate or other filler materials is very high, a three-screw extruder should be selected to increase production capacity

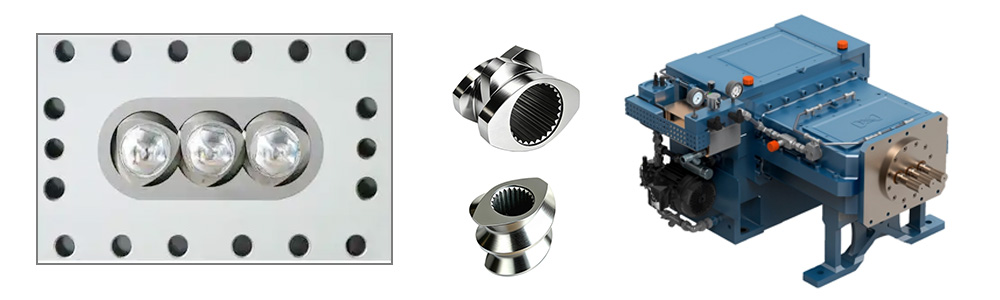

Price of triple screw extruder



Similarities Of Twin/Triple Screw Extruder

  • The modular screw element can be freely adjusted for cutting size
  • The material and size of the screw and core shaft are the same
  • The length of the cylinder is the same, and both have cooling water channels
  • All have exhaust outlets to ensure that there are no residual bubbles or harmful gases in the melt



Twin/Triple Screw Extruders Differences

  • Gearbox structures are different, and the common ones are high torque
  • The width of the cylinder varies, and the size of the heater varies
  • The output varies in high-fill projects. For example: MT75: 1000kgh MTR: 2000kgh, with the same diameter screw, the production capacity difference is between 800~1200kg/h, only applicable to high filling projects



When To Choose A Three Screw Extruder

  • When the twin-screw cannot meet the production capacity with the same formula, the characteristics of the three-screw extruder can be fully utilized
  • The original site cannot be expanded, but due to the limitations of the workshop size, the twin-screw can be upgraded to a triple screw.
  • Due to high filling projects and large powder usage, fully automatic weighing and mixing systems, including packaging systems, are required. Large output and fast speed, manual material pouring cannot keep up with the production rhythm.



We provide full-cycle turnkey engineering services from laboratory formula sampling to large-scale production line implementation.

Our professional engineering team can provide formulas, installation, debugging, and worker training according to your specific needs, ensuring that the equipment can reach its maximum potential in the shortest possible time.
