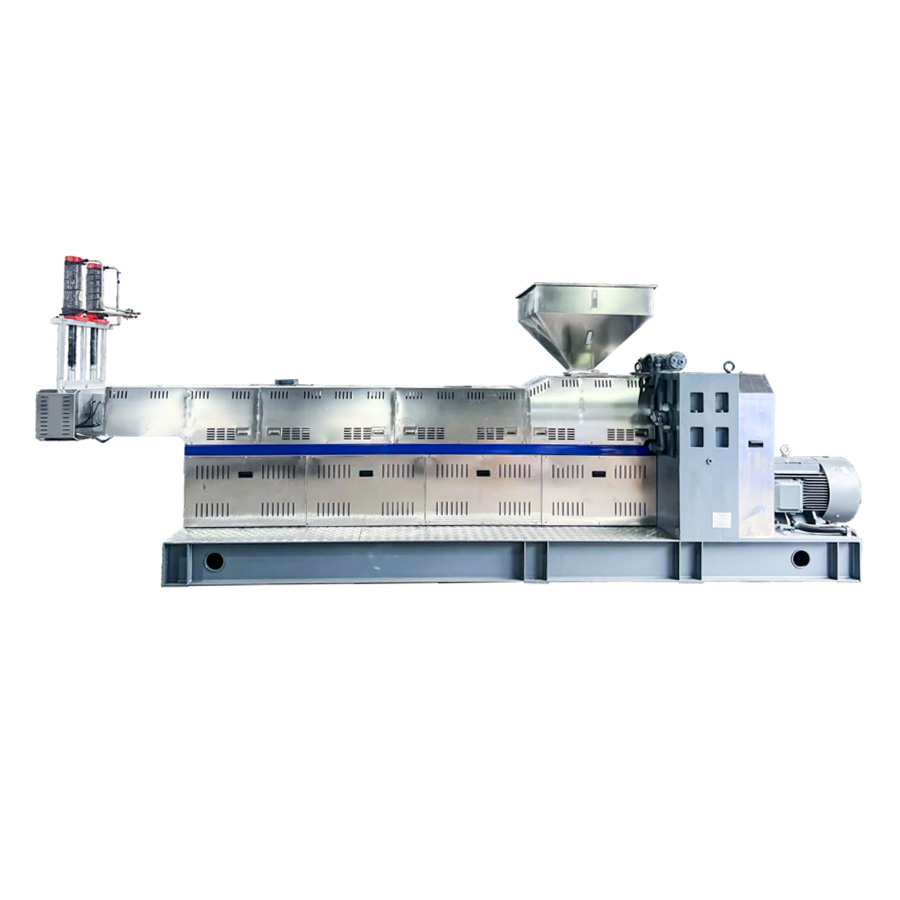

Single Screw Extruder

Single Screw Extruder

In the plastic processing industry, the stability, production efficiency, and energy consumption of equipment directly determine the core competitiveness of enterprises. The single screw extruder is one of the most widely used pieces of plastic equipment. Whether it’s for establishing a new production line or upgrading existing equipment, a high-performance single screw extruder can inject strong momentum into your production.

             INQUIRE NOW
Product Parameters
Type L/D Main Power(kw) Screw Diameter(mm) Screw Speed (rpm) Output(kg/h)
MSI25 20~33:1 4 25 150 0.5~15
MSI65 20~33:1 11 65 150 20~35
MSI100 20~33:1 37 100 150 100~200
MSI120 20~33:1 45 120 150 250~350
MSI150 20~33:1 90 150 150 350~500
MSI180 20~33:1 185 180 150 550~750

Single Screw Extruder Application

  • Pipe and profile materials:  PVC drainage pipes, PE water supply pipes, PPR hot water pipes, door and window profiles, etc
  • Sheet and board materials:  PET packaging sheet, PS foam board, PC endurance board, PP hollow board, etc
  • Granulation and recycling:  cleaning and granulation of recycled plastics, color masterbatch, filled masterbatch, modification of engineering plastics, etc
  • Specialty products:  high-precision items such as medical catheters, fiber optic sheaths, and 3D printing filaments
  • In addition, plastic injection molding machines are the most common single-screw extrusion equipment



Advantages Of Single Screw Extruder

Excellent plasticizing performance:

  • Three-stage screw design (conveying stage, compression stage, metering stage) tailored for special materials
  • Customizable split screw structure to enhance mixing efficiency and exhaust performance

High efficiency and energy saving:

  • Equipped with Omron or RKC temperature control system and variable frequency drive motor, it achieves dynamic matching of energy consumption
  • The barrel is made of high-quality alloy steel lined with a bimetallic layer or subjected to nitriding treatment, making it wear-resistant and corrosion-resistant, thus ensuring a longer service life
  • Modular design, flexible adaptation to various processes, from MSI25 laboratory micro-machines to MSI250 large industrial units, covering a full range of product specifications
  • It supports multiple functions such as multi-layer co-extrusion, lateral feeding, and vacuum degassing, meeting the processing needs of various thermoplastic materials such as PP, PE, PVC, PET, and ABS
  • Intelligent control, easier operation. Equipped with PLC+touch screen centralized control system for real-time monitoring
