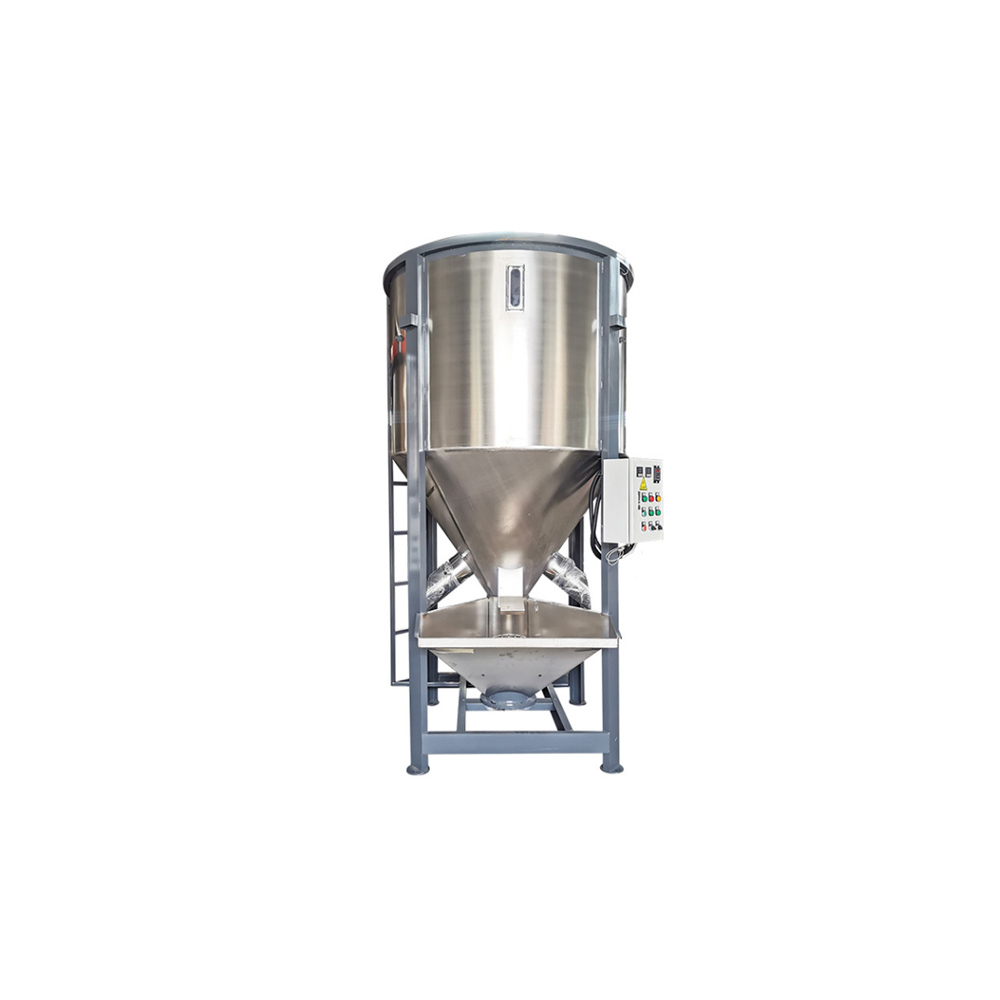

Silo

In plastic processing and injection molding workshops, raw material storage is often overlooked as a detail. Traditional stacking not only occupies valuable factory space, but also comes with high manual handling costs, severe material loss, and uncontrollable dust pollution. MQ Silo, shifting raw material management from “chaos” to “order”.

             INQUIRE NOW
Product Parameters
Type Max capacity(KG) Power(KW) Speed(R/Min) Dimensions φ*H（MM） Weight（KG）
M-SL500 500 3 350 1100*2400 400
M-SL1000 1000 4 350 1360*2450 580
M-SL1500 1500 4 350 1650*2850 735
M-SL2000 2000 5.5 350 1750*2950 980
M-SL3000 3000 5.5 350 1800*3500 1190
M-SL4000 4000 7.5 300 2200*3650 1430
M-SL5000 5000 7.5 300 2350*4150 1630
M-SL6000 6000 11 300 2500*4450 1800

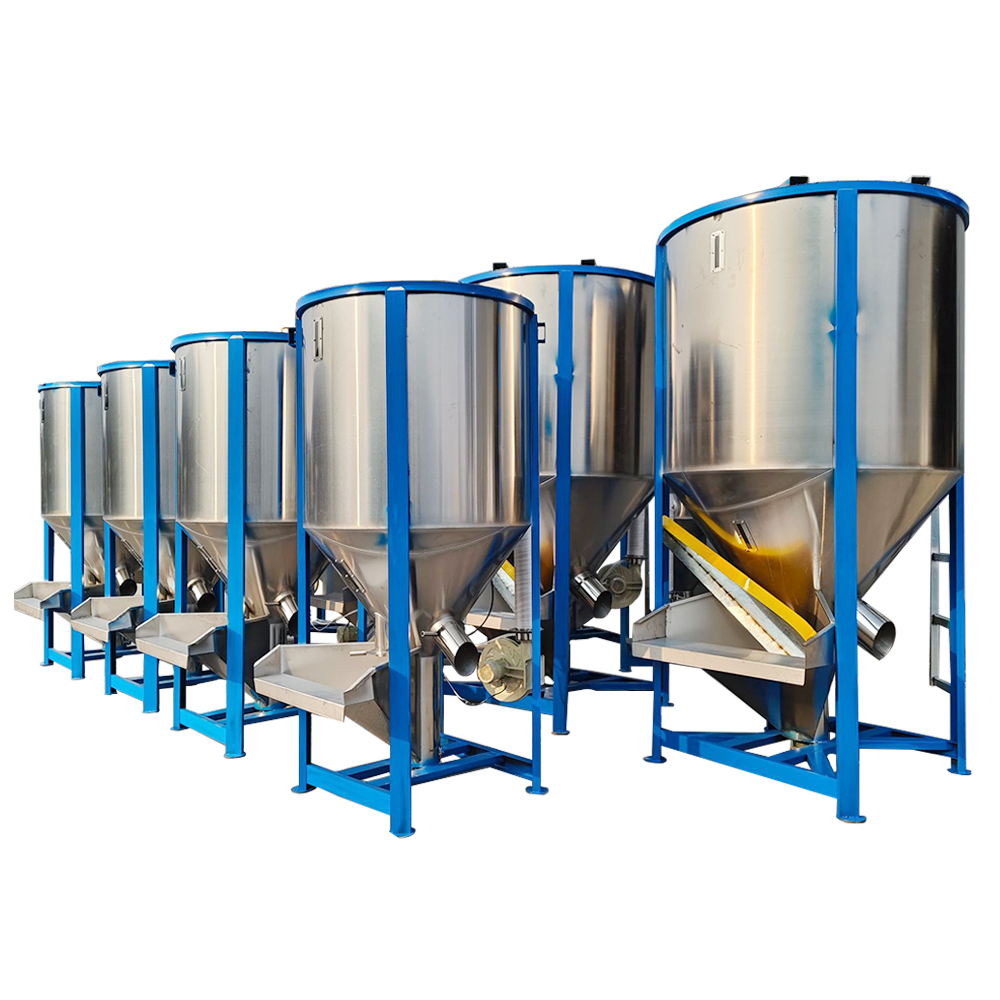

The Advantages Of Our Plastic Silo

  • Made of 304/316L high-grade stainless steel, it has excellent corrosion resistance and can easily cope with various complex workshop environments.
  • The large curvature structure design and precise smooth polishing process eliminate hygiene blind spots to the greatest extent possible.
  • Fully enclosed pneumatic conveying pipeline to reduce dust intrusion
  • Sealed moisture-proof structure, effectively preventing particles from being affected by moisture and degradation（Can add a drying system internally）
  • There are various types of capacities: 300L~20000L, all of which can be customized. （Foreign customers need to refer to the container size for transportation.）
  • Flexibility: It can be paired with a weighing system, automatic feeding, or drying system to flexibly respond to various projects.



From small silos weighing hundreds of kilograms to large three-dimensional silos weighing thousands of tons, it fully meets the strict standards of the food grade, pharmaceutical grade, and heavy-duty chemical industries.

Choosing an MQ plastic granule silo means choosing a highly cost-effective space management and material control solution.
